Beater Ball for music

The Kick Drum Beater Ball is for impacting the bass drum of a drum set.
Play a sample today. Call to order a sample unit.

patpix/beat1.jpg

IMPROVED IMPACT BEATER

( KICK DRUM )

There are many types of Kick Drum Beater Balls on the market today, virtually every size, shape, and construction. The need for an improvement
of the Beater for the kick drum has been felt for some time. For every action there is a reaction.

For the action of the Beater striking the head of the drum, the reaction is for the head to throw the beater backward. The result of this reaction is a
diminished low frequency projected resonance and sore legs. The marriage of Physics and Acoustics has developed a new Beater Ball for today
modern drum player.

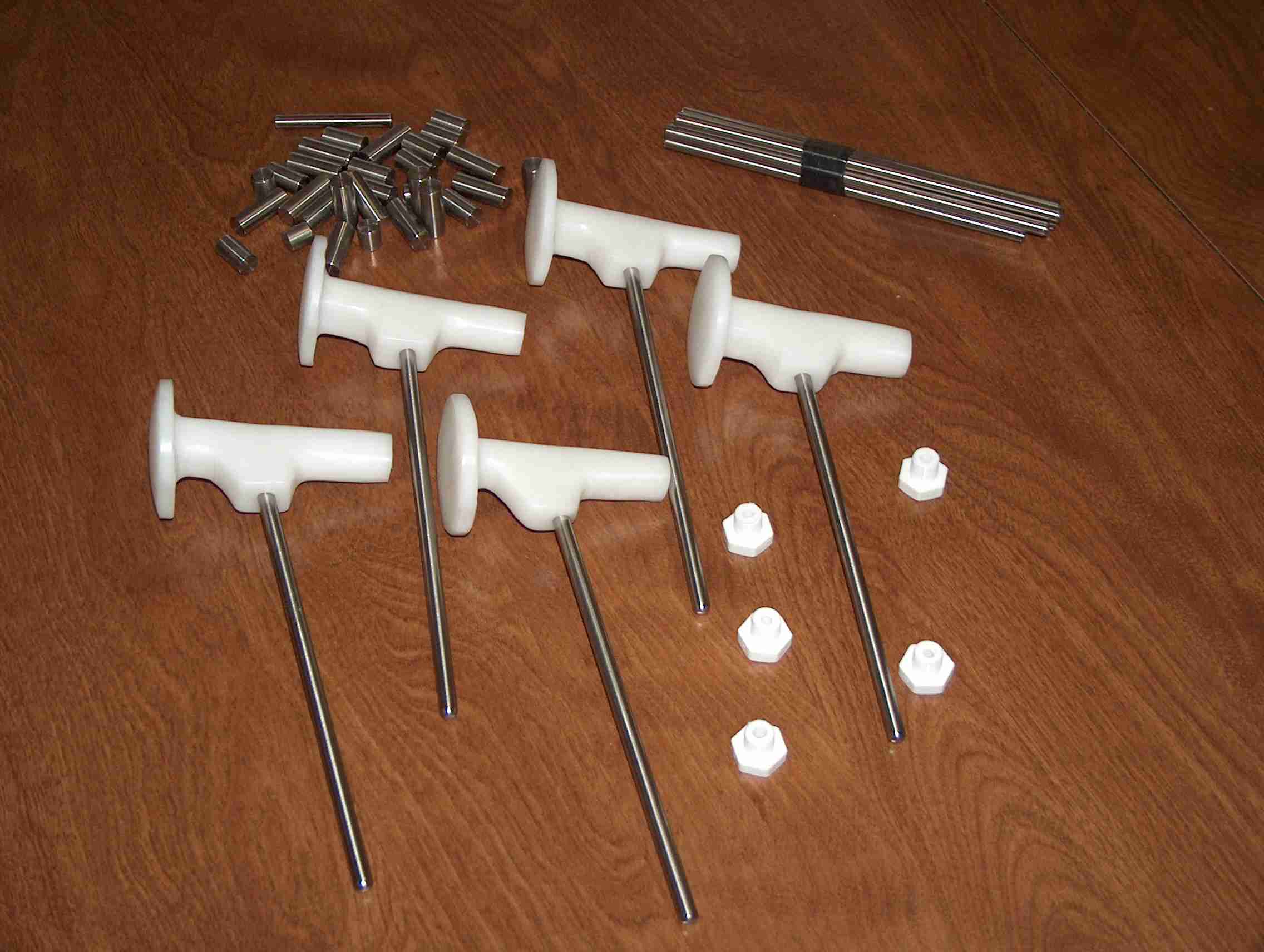

This " Ball " utilizes weights which slide freely in chambers which are mostly perpendicular to the surface of the Beater. These weights are removable
and changeable in calibrated mass increments so that the secondary-successive impact momentum may be custom tailored to the energy of the music
and kit performance. In addition to the customized weight selection, the access caps on the weight chambers are hollow and internal cavity length
selectable so that the increment of the time delay between the initial face impact of the Beater and secondary-successive impact of the weights may
be fine tuned for performance. Personalized combinations of the selectable weight mass and the time delay feel of the secondary impact, give the
player a totally customized feel for the kick drum action.

Due to the secondary-successive impact, the drum head does not have the chance to throw back the Beater. This action makes the contact swing
more positive and virtually buzz less and bounce less. These qualities produce a more lengthy and stable contact time and better tonal resonance.

The better impact feel and perceived lower tonal quality is produced by the following events.

Upon initial contact of the beater to the head of the drum, the weights are being carried in the rear caps of the beater. Milliseconds after the
beater impacts the drum head, the weights slide forward. With the customized selection of mass and time delay, the successive impact keeps the
Beater in contact with the drum head. This increased time constant produces an increased head and air compression time. This increase in air
compression time means that the low frequency resonating air will remain compressed and resonant in front of the head, and will travel further
in distance, at a higher SPL, and for a longer period of time. This increase in resonant time allows the ear or the microphone to react and
register over this extended time period.

Due to the poor low end frequency response of the ear, this longer resonance time of low end energy is much more readily perceived and
understood by the ear. Interferometry in spectral time graphically depicts this Psycho-Acoustic perception. The equivalent electrical circuit
is mathematically verified. Until now, this lower end energy went mostly unnoticed. Massive amplification would normally be required to
produce even a lessor effect on the player and listener. This perception of lower frequency energy is accomplished without the use of excessive
wattage, or cabinet weight.

There are many other benefits to this improved Beater.

Louder Sound Perception

Lower Note Perception

Longer Pedal Life

Less Leg Fatigue

Fully Customized Balance and Feel

Customized Action To Suit Floor Feel

Available Fuzzy Face Covers

Truly this advancement in Beater Balls is not just a new design, but an actual technologic break through.



Impact weights go in to the launch galley:

patpix/beat3.jpg

View of the Beater Ball from the face


I have a limited number of samples available to highly qualified buyers.
Please contact me for more information.



DRUM STICKS

High Impact Energy Drum Sticks

These Drum Sticks impart substantially more energy to the drum head during high energy impacts while maintaining full and fast control for quick stick work:
Play a sample today. Call to order a pair of sample sticks.

These Pages Let You Download Information About Gary's Patents:
High Impact Sticks description and operation

Sample Advertisement

patpix/stickad1.jpg

Actual prototypes of the sticks are not available
A spring operated variant is available for trial
Please call for information

Pulse Mode Ignition System For Internal Combustion Engines

This is a revolutionary new Ignition system for all spark based motors:

These Pages Let You Download Information About Gary's Patents:
Pulse mode continuous fire Ignition System operation

Actual prototypes of the ignition system are not available

Please call for information

Insertable Device to convert a standard flashlight in to an emergency device

This is a revolutionary new Ignition system for all spark based motors:

These Pages Let You Download Information About Gary's Patents:
Insertable Device to convert a standard flashlight to an emergency device

Actual prototypes of the device are not currently available

Please call for information

New Product Goes Here

This space is for a new Patent description:

images/powflag.jpg

Gary A. Minker
7370Turkey Point Drive
Titusville, Florida 33467
Phone: 561-969-9245

Gary@RadioWorksRFConsulting.com



Intellectual Property Rights are also available
for License or sale.

Watch for new Patent additions to this page,br> Please visit the link below to view the other Patent that will appear here also:
